PRODUCT DESCRIPTION:

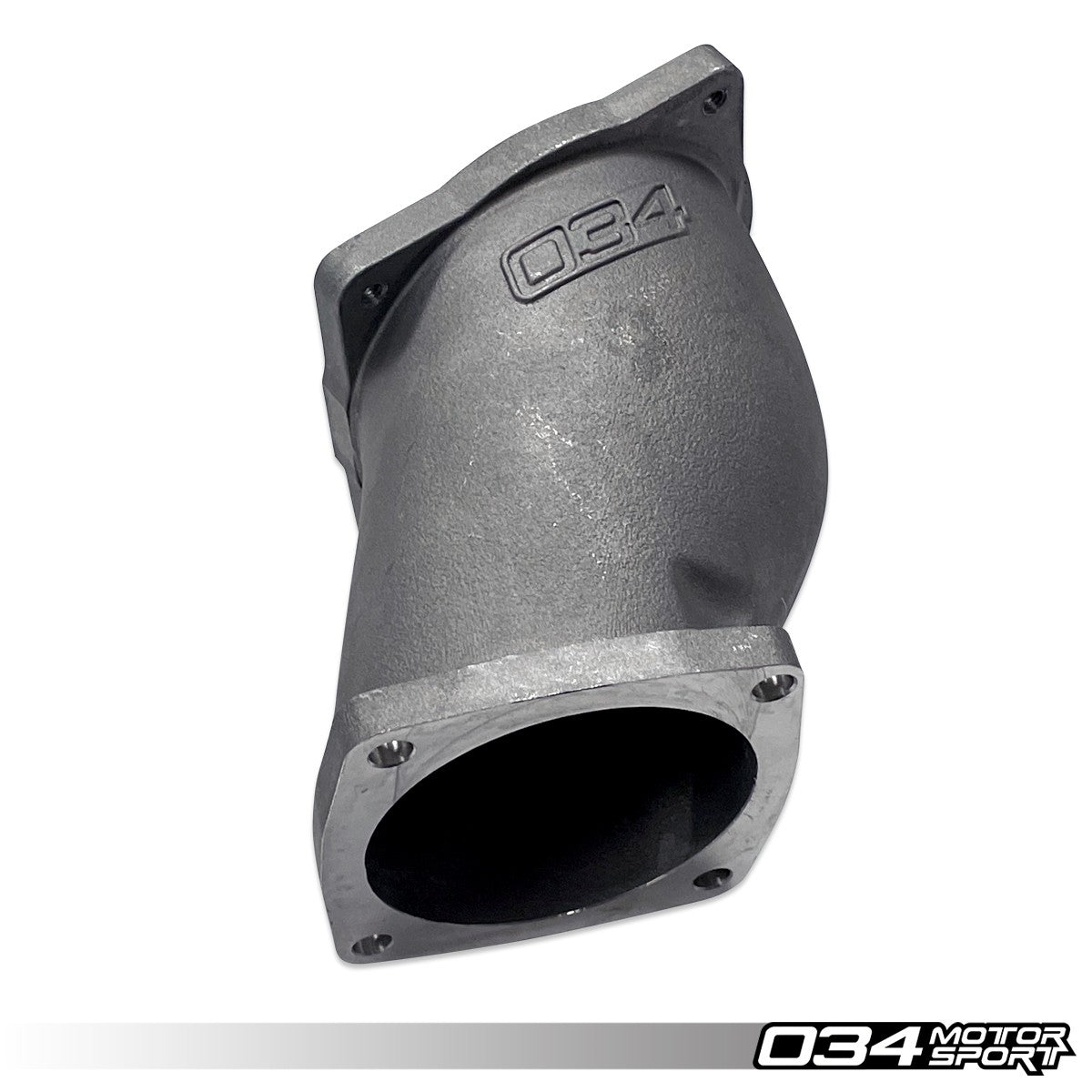

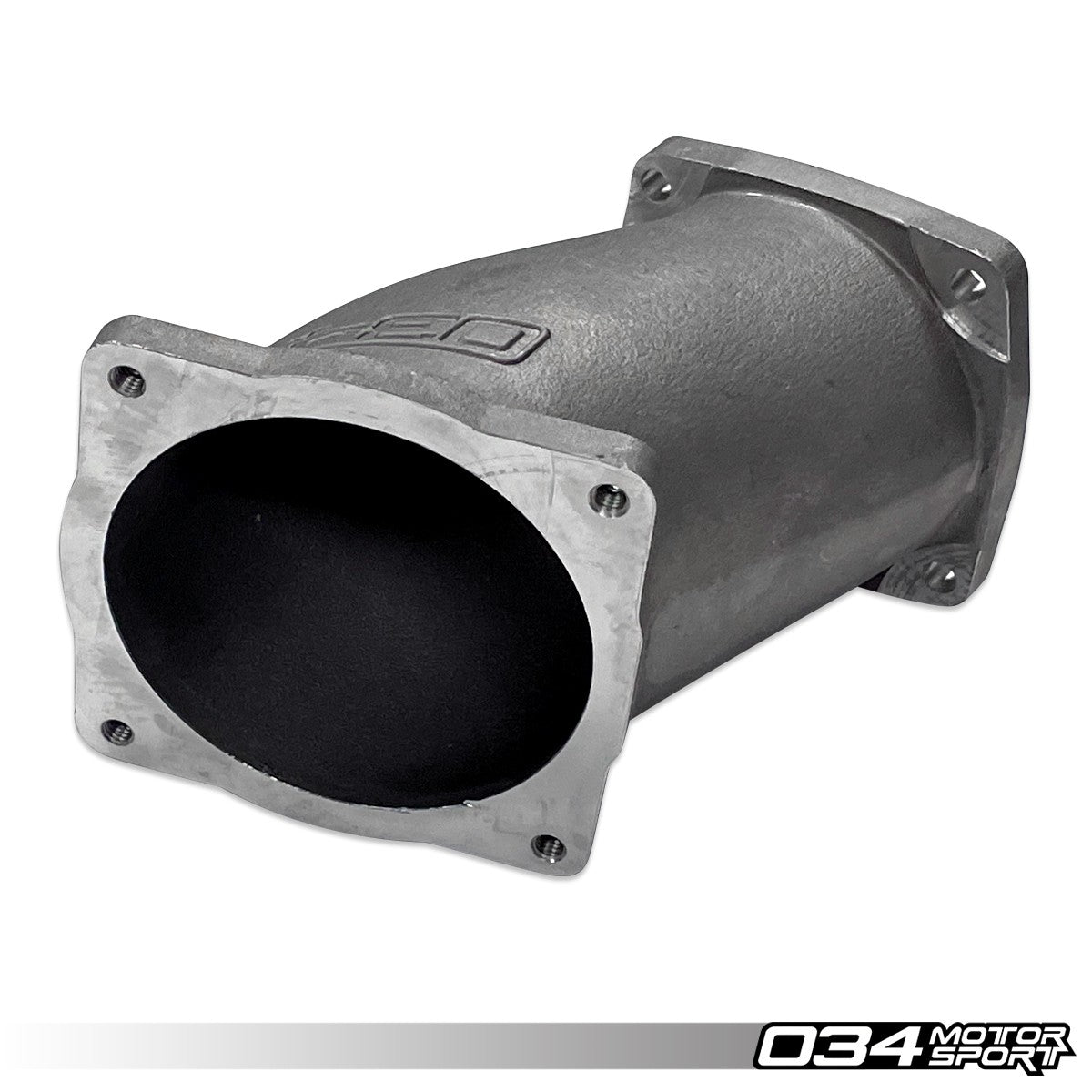

The 034Motorsport SüperDüper Charger Throttle Body Adapter utilizes a cast and machined aluminum throttle body adapter, offering a smooth transition between the larger throttle body to the supercharger inlet. This results in a 20% increase in flow over the OE throttle body when paired with an 84mm throttle body. Additionally, the throttle body adapter and gasket can be port matched to the supercharger during supercharger porting, allowing for increased airflow.

Significant effort went into developing this comprehensive performance-improving throttle body adapter solution for the supercharged 3.0 TFSI engine found in the B8 and B8.5 generation of S4 and S5. The 034Motorsport SüperDüper Throttle Body Adapter offers users an easy bolt-on solution for those looking to upgrade their throttle body for maximum performance and flow gains!

034Motorsport Dynamic+ Tuning is required to safely run this SüperDüper Charger 84mm Throttle Body System. Files to support this upgraded hardware are included with our Stage 2+ 91, 93, 100, 104, & E40 octane options free of charge.

034MOTORSPORT SÜPERDÜPER CHARGER THROTTLE BODY ADAPTER DYNO CHARTS

FEATURES:

• Cast and Machined A356 Aluminum Throttle Body Adapter
• Improved Flow Where the Stock Throttle Body Becomes Restrictive
• Allows Upgrade to a VDO 84mm Throttle Body
• • OEM BMW V8 Throttle Body Designed for Reliability and Long Lasting Performance
  • VDO 408-238-426-004Z Not Included in this Kit
• 20% Increase in Flow Over the OE Throttle Body
• • Stock 70mm : 380 CFM
  • 034Motorsport Adapter with 84mm Throttle Body: 457 CFM
• Smooth Transition from the Large Throttle Body to the Supercharger Inlet
• Throttle Body Adapter and Gasket Can be Port Matched to the Supercharger During Supercharger Porting, Allowing Even More Flow
• Wire-Reinforced Multi-Ply Silicone Hose
• Maintains Smooth Inside Surface for Optimum Flow
• Nylon Breather Tube Connection Nipple

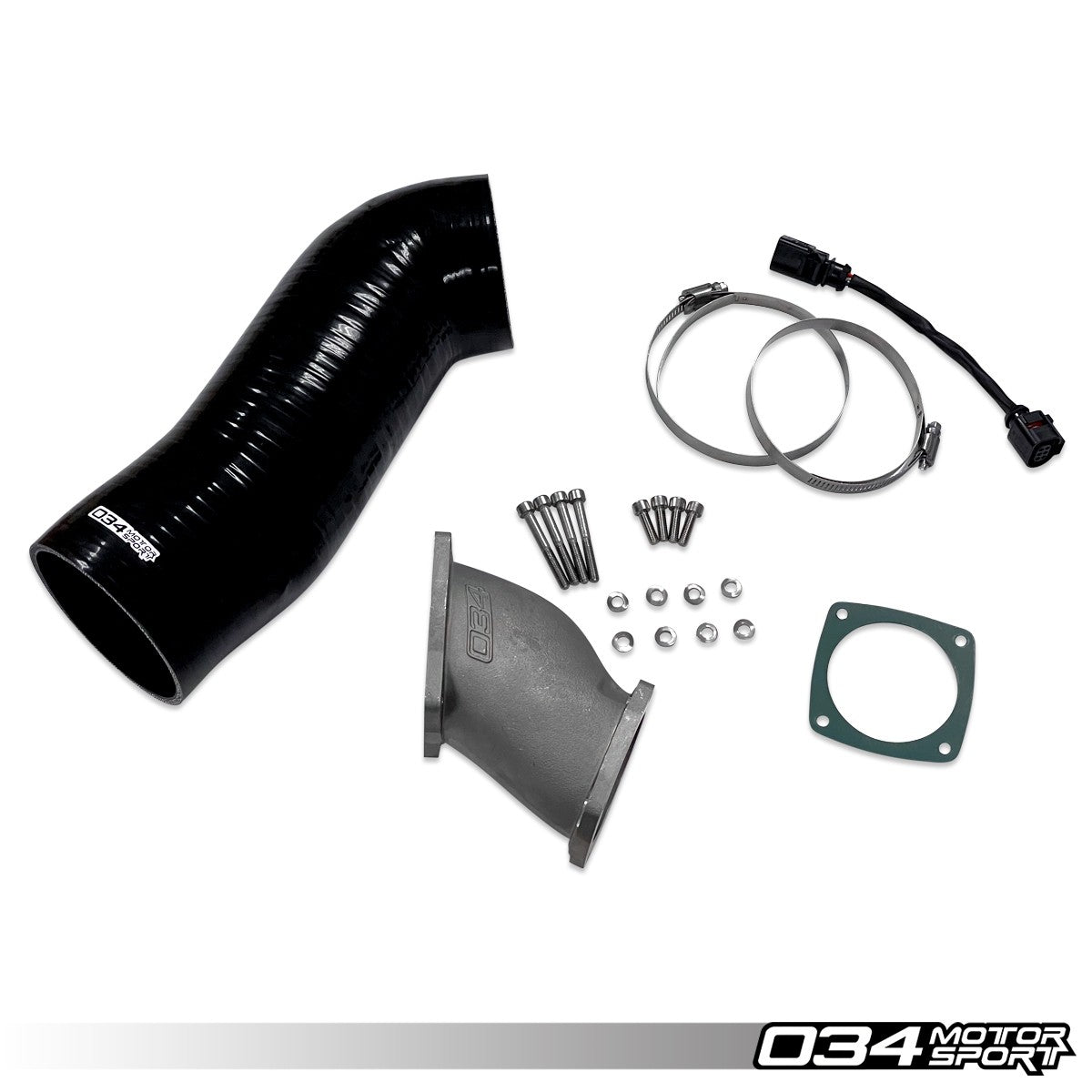

WHAT’S INCLUDED:

• Throttle Body Adapter
• Silicone Hose
• Wiring Harness Adapter
• Adapter to Supercharger Gasket
• All Necessary Hardware

REPLACES OE PART NUMBERS:

• 06E 133 062 H
• 06E 133 062 G
• 06E 133 062 C

NOTES:

• Included with the SüperDüper Charger Throttle Body Adapter is our wire-reinforced multi-ply silicone hose. This hose is designed to be mated with X34 Carbon Fiber Intake if you already have our intake system. If you do not have our X34 Carbon Fiber Intake, you will need the full SüperDüper Insuction Bundle (COMING SOON).
• This kit will not work with stock intake

EMISSIONS DISCLAIMER:

• This product is sold for racing use as well as use on vehicles not registered for on highway use.
• By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.
