Apex Wheels Forged SM-10RS - Toyota Fitment

SKU: SM10RS178ET40-5100-561-AN
Sale price$825.05 CAD

Tax excluded. Shipping calculated at checkout

Universal Fit
This product may require modification.

PCD: 5x100
Size: 17x8 / +40 /56.1 / 5x100
Finish: Anthracite
Please Contact Us for Availability
17 Laidlaw Boulevard Markham, Ontario L3P 1W5

The weight is over

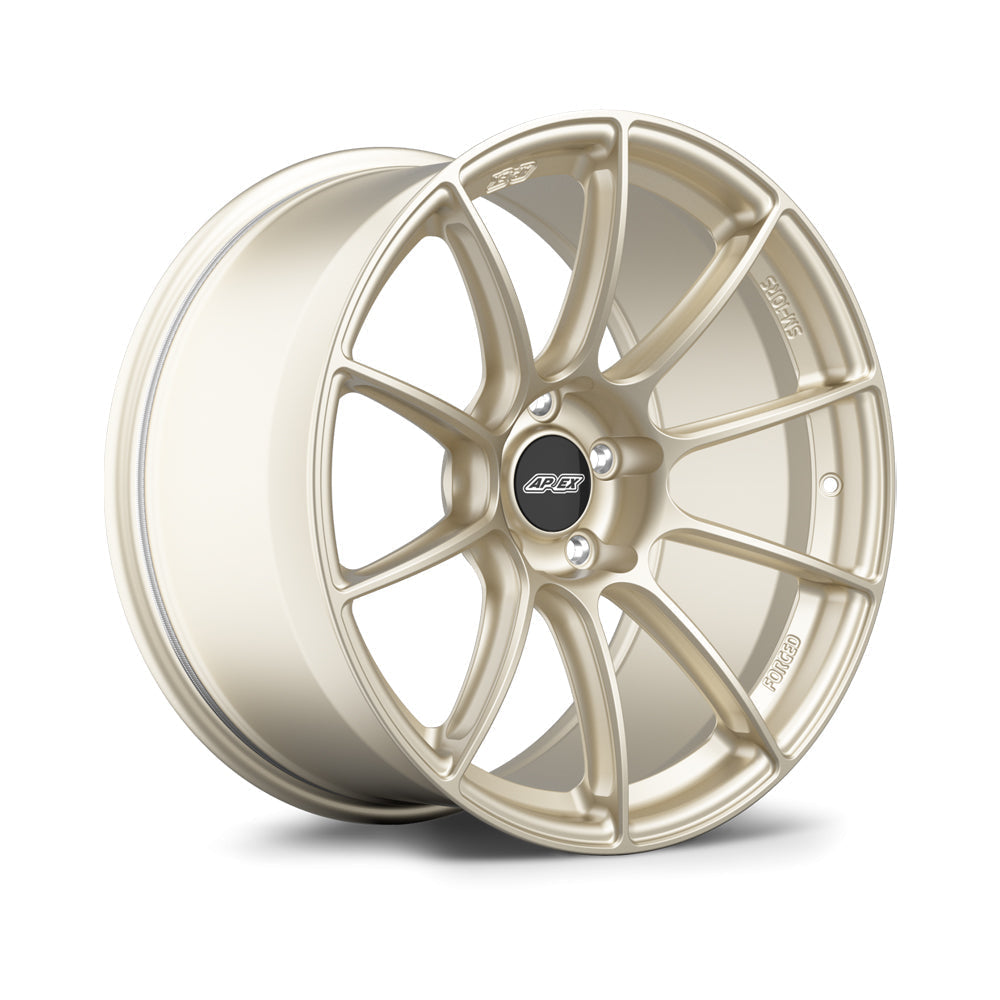

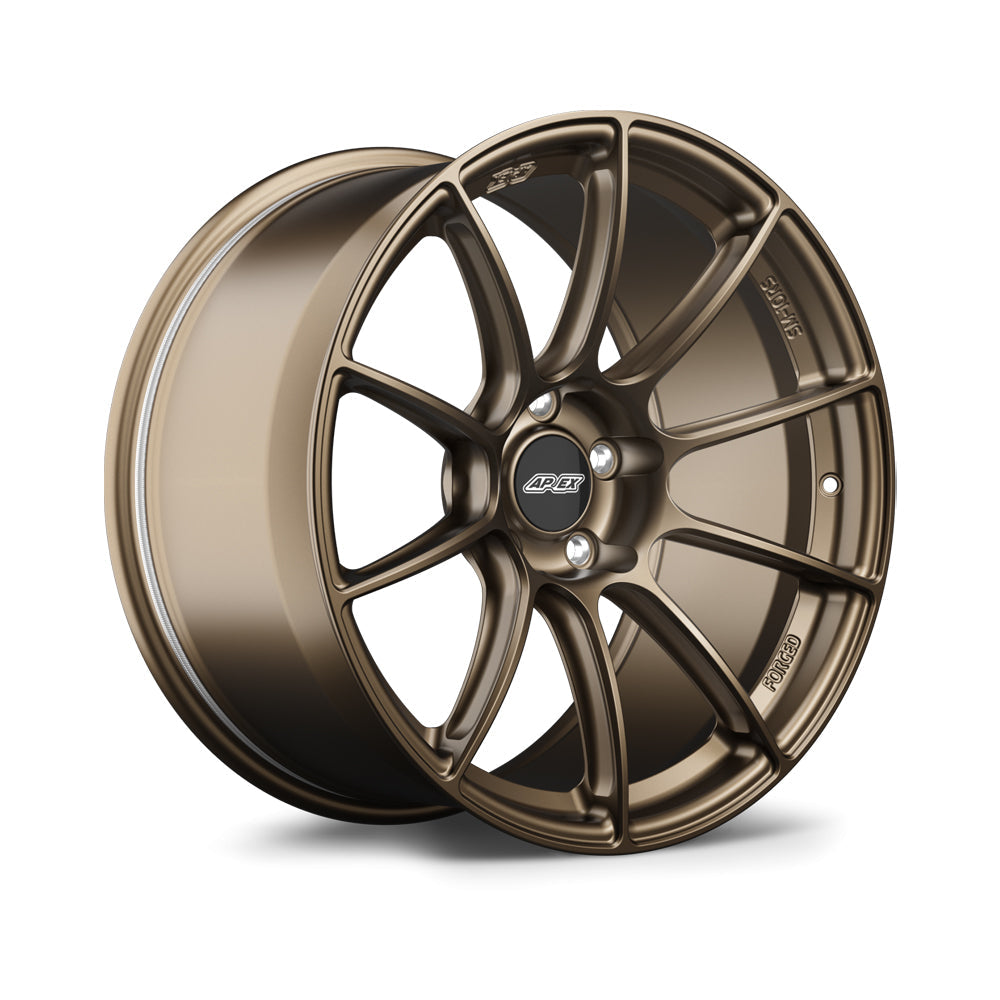

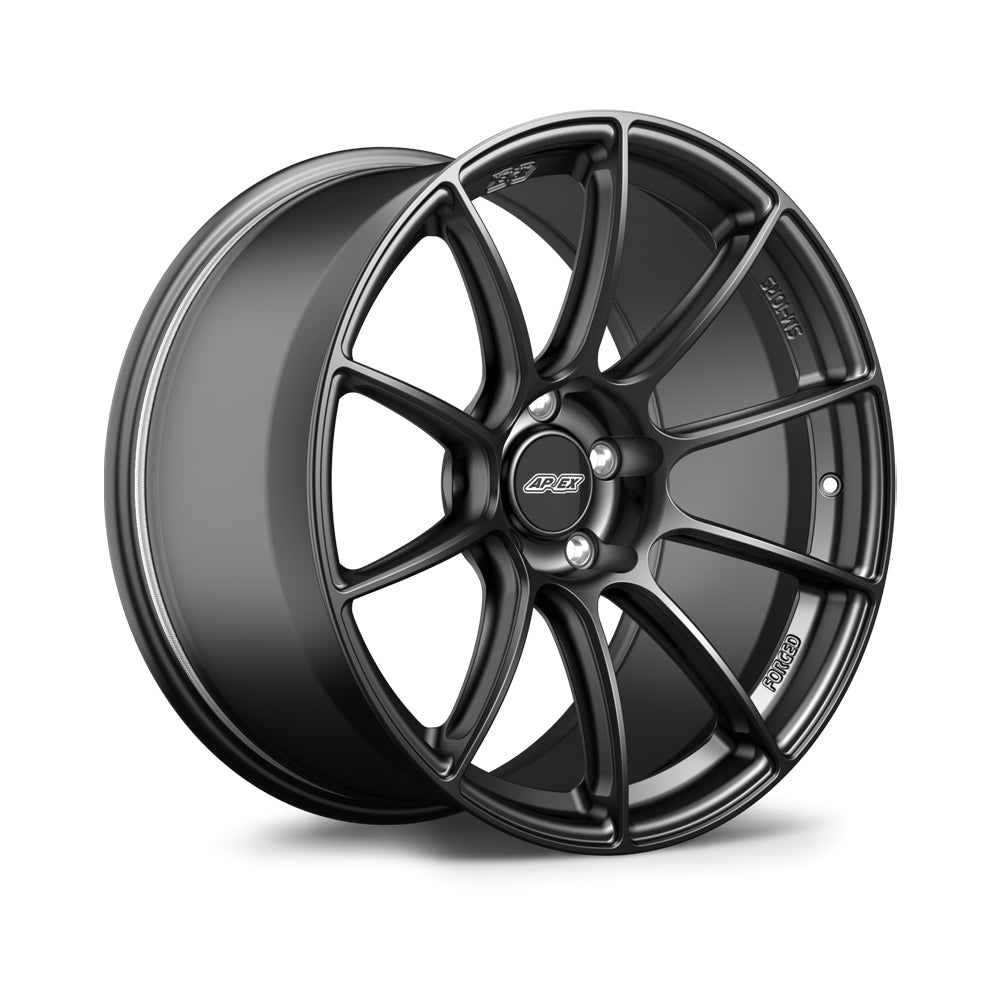

Introducing the Apex SM-10RS, part of our Sprint Line of forged wheels. Innovative engineering makes it light, forged manufacturing makes it strong.

SM-10RS Highlights

  • 10K Ton Forged 6061-T6 Aluminum
  • I-Beam Spokes for Reduced Weight
  • Stronger Sprint™ Spec Inner Lip
  • Massive Brake Clearance
  • Paintless Knurled Beads
  • Unmatched Replacement Program
  • Lifetime Structural Warranty
  • Independently Tested and Certified

    SM-10RS Features


    10K Tons of Pressure

    Our new forgings weigh as much as 120 pounds before machining. To form such a thick blank we require special equipment capable of 10,000 metric tons of pressure. This extreme pressure increases the strength of the aluminum by eliminating porosity and improving the grain structure.

    True Motorsport Blanks

    Many companies use 3rd-party blanks intended for non-motorsport wheels which can severely limit sizes, concavity, spoke design, and critical brake clearance. We designed our very own blank profiles from scratch to give us total control over the final product.

    I-Beam Spokes

    One of the most noticeable features of the SM-10RS is its use of side-milling on both sides of each spoke, creating an I-beam effect. Any excess material that doesn’t add strength is carved out using a precision CNC ball cutter. Side-milling is often deemed cost-prohibitive by others, but for true performance without compromise we believe it's essential.

    A Stronger Lightweight Wheel

    Our forged Sprint™ wheels are lightweight without the strength compromises found on typical lightweight wheels. First, we carved out as much material as possible, then we purposefully added one pound back to reinforce critical areas, creating a stronger inner lip and a higher load rating.² What’s the point of a lightweight wheel if it’s fragile?

    Load Ratings (lbs)
    JWL Load Standard1521
    Typical Forged Wheels1521
    APEX Flow Formed1550
    APEX Forged Sprint™ Line1600

    Weight Optimized

    We conducted extensive Finite Element Analysis (FEA) to reinforce high-stress areas and to remove material where it didn’t improve strength. The result is a wheel that is exceptionally light without the strength compromises found on typical lightweight wheels.²

    APEX Sprint™ Line - 18 lbs 1600 lbs
    APEX Flow Formed - 21 lbs 1550 lbs

    Greater Stiffness

    The SM-10RS is not just another style to choose from. We used Finite Element Analysis of bending loads to optimize spoke geometry for greater stiffness without increasing weight. In fact, the SM-10RS is nearly identical in weight to our popular VS-5RS yet almost 10% stiffer, and 25% stiffer than our first generation of forged wheels.

    STL-radial-test-logo-Apex-EC-7RS

    Independently Tested

    We don't rely solely on computer simulations or unverifiable in-house testing. We believe independent testing is critical to protect consumers in this unregulated industry. We chose STL, an independent lab in Ohio, to test our Sprint™ wheels far above JWL standards, including increases in testing duration, impact drop height, and total load.

    Tougher Inner Lip

    Introducing the Sprint™ spec inner lip, with a unique channel profile that makes it even stronger than our previous designs. So even though our Sprint™ wheels are pounds lighter than comparable flow formed wheels, the inner lip is stronger.

    32%

    More reinforcement

    than our flow formed wheels3

    Big Brake Clearance

    From day one, APEX has been on a mission to build wheels that clear big brakes. Our new forged wheels are the product of everything we’ve developed over the past 10+ years, including an innovative high-clearance barrel design and vehicle-specific spoke profiles.

    Deeper Concavity

    Our new forgings were redesigned to create extra deep, concave spoke profiles. Their new shape allows us to make any profile, from flat to deep and everything in between. Each one is optimized for a specific application using 3D laser scans of factory and aftermarket brake kits.

    Paintless Knurled Bead

    Whether it's a day at the track or months of street driving, repeated hard braking and acceleration can make a tire slip along the bead seat and go out of balance, causing vibration. Knurled beads help, but are less effective when painted over. Our forged line features unpainted knurled beads that stay sharp and maximize grip.

    Built for Impact Sockets

    Track wheels need track tools. Don’t settle for wheels that require undersized tuner lugs or thin walled sockets. All APEX wheels accommodate over-sized race lugs and impact sockets to make swapping wheels lightning fast.


    32mm

    Socket Diameter Clearance

    Laser-Engraved Specs

    As track enthusiasts ourselves, we know how frustrating it is to try to locate and decipher wheel specs that have been hastily hammered into the rim or become unreadable over time. With our new Sprint™ wheels, we chose to invest a little extra and laser-engrave the specs on the barrel, in plain sight, making them easy to find and read. (You’re welcome.)
