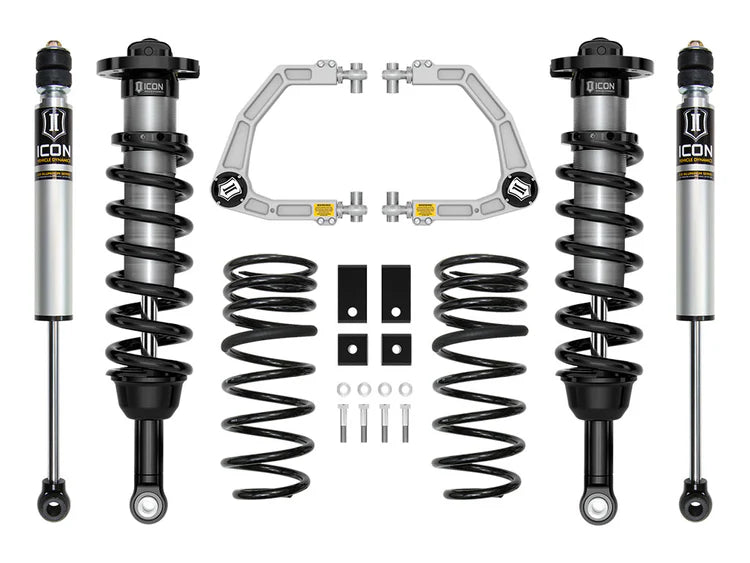

Icon 3-4.5" Lift Stage 4 Billet Suspension System (TRD) - 2023-2025 Toyota Sequoia

SKU: ICOK53234S
Sale price$5,687.88 CAD

Tax excluded. Shipping calculated at checkout


The ICON Vehicle Dynamics Stage 4 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the ICON threaded-body V.S. 2.5 Series Coilovers with the addition of adjustable billet aluminum front upper control arms. This system offers improved on- and off-road performance as well as improved alignment specs with front-end lift and leveling for a proper stance and fitment of up to 35" tires. To compliment the internal reservoir coilover shock and billet control arm combo, a sway bar drop kit for the front of the truck is included along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.
  • Vehicle specific design for 2023-2025 Toyota Sequoia
  • 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
  • Adjustable front ride heights from 3-4.5” of front lift over stock
  • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Allows for full wheel travel without overstressing OE components
  • Dual rate rear coil springs improve performance and ride quality while providing 2" or 4" of rear lift, depending on the vehicle's stock suspension package
  • 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
  • All ICON shock absorbers are fully rebuildable and re-tunable

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
  • APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
  • APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage. Not required for TRD Pro.
  • APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
  • APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
  • APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
  • TECH NOTE: Most Sequoia submodels will have front lift height range of 3-4.5” over stock and 4" of rear lift over stock. Submodels equipped with TRD Off-Road Package and TRD Pro will have a front lift height range of 1-2.5" over stock and 2" of lift over stock in the rear. If shorter rear ride heights are desired, consider kit part number K53234.



This Part Fits:

Year Make Model Submodel
2025 Toyota Sequoia 1794 Edition
2023-2025 Toyota Sequoia Capstone
2023-2025 Toyota Sequoia Limited
2023-2025 Toyota Sequoia Platinum
2023-2025 Toyota Sequoia SR5
2023-2025 Toyota Sequoia TRD Pro
