Description

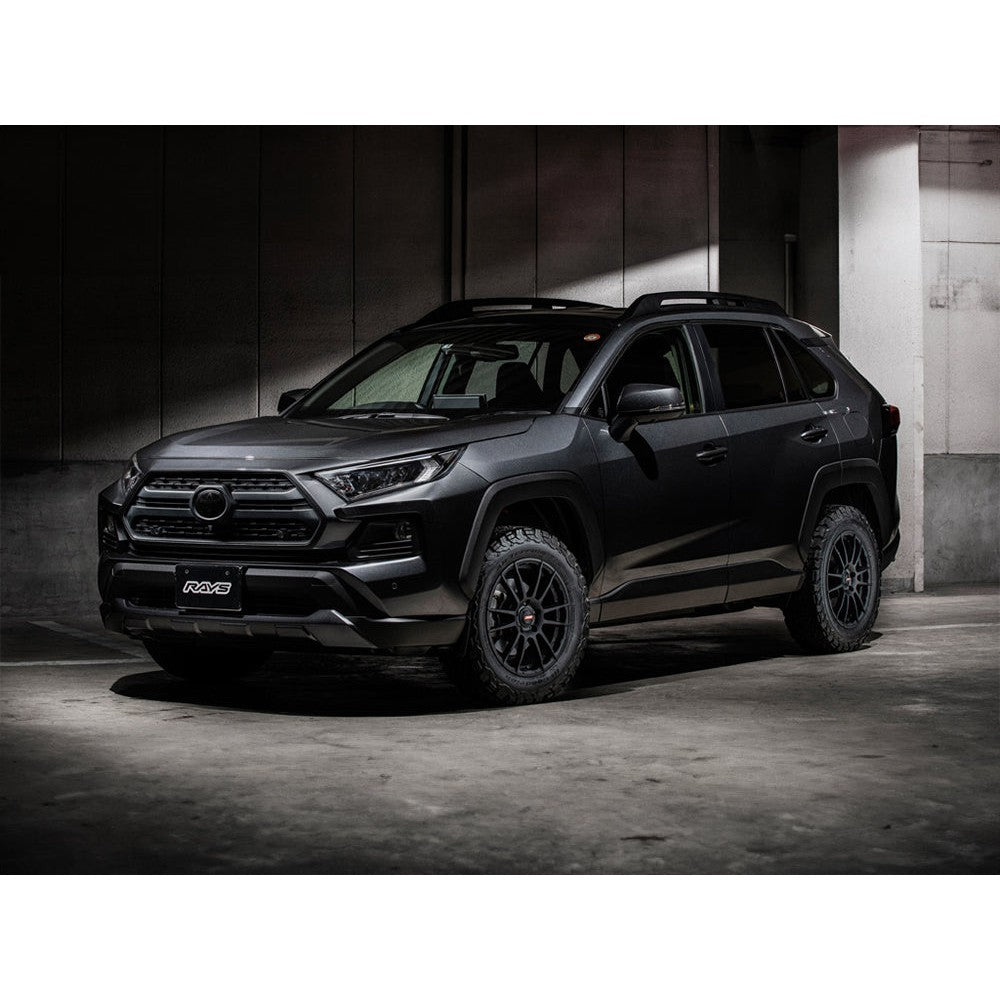

The Third R model also for SUVs.
57XR, the third model of the gramLIGHTS 57 R Series, is supported in various scenes including the top category drift racing.

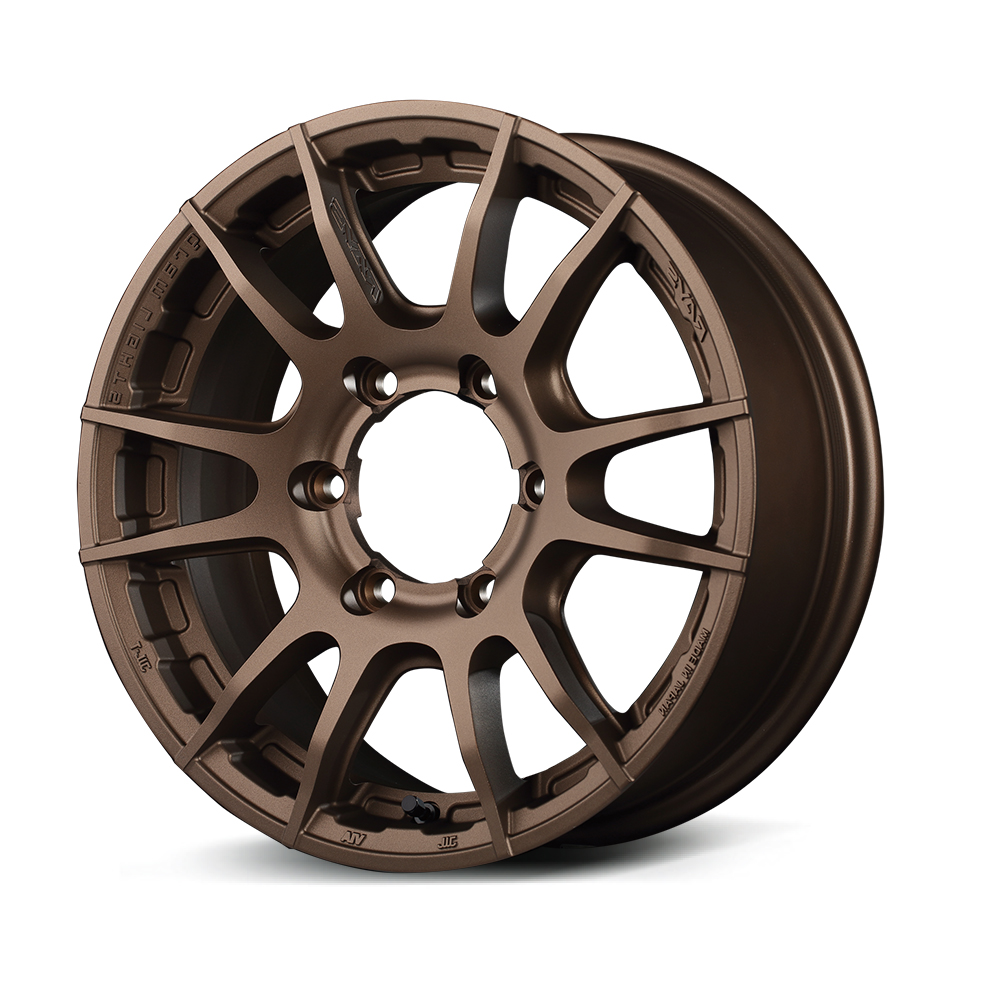

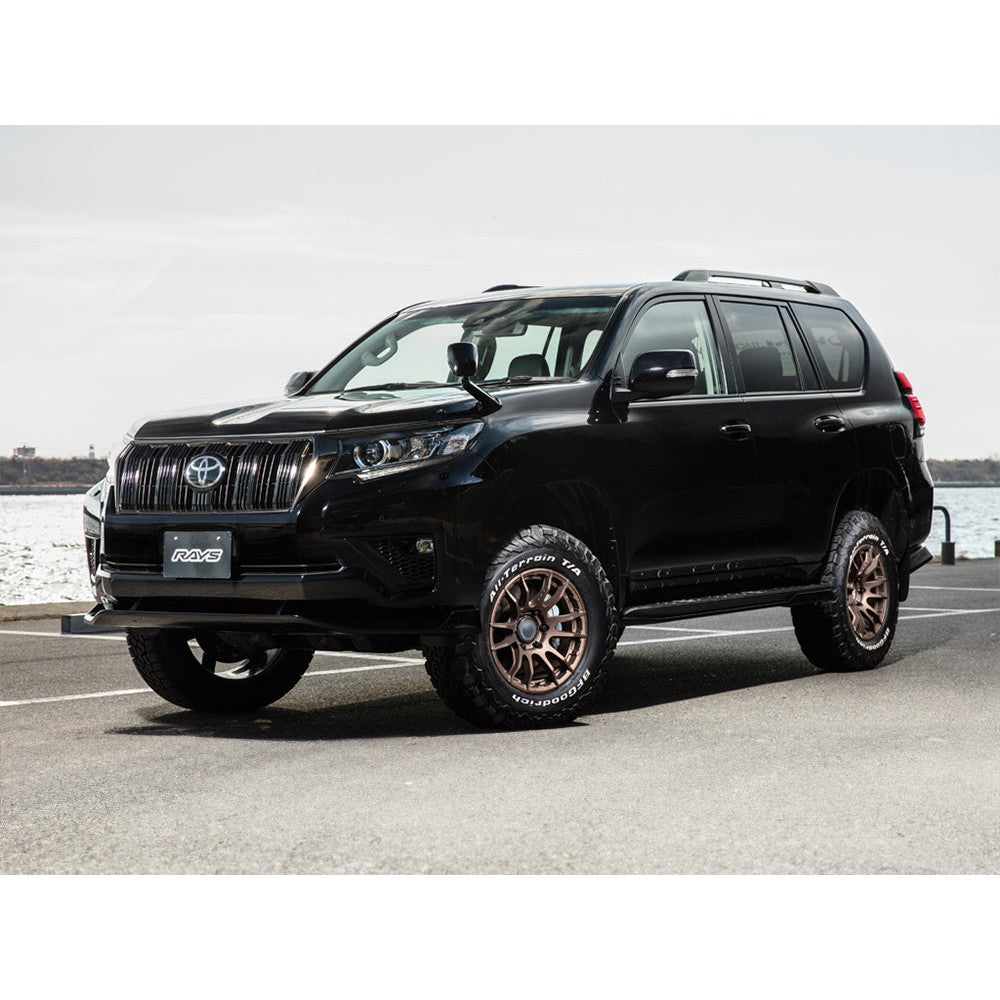

For new 57XR-X, the competitive 2×6 spoke design inherited from 57XR was redesigned in a special way such that the wheels match vehicles for which large PCD wheels are used, such as Land Cruiser Prado, Hilux, and Hiace. The characteristics of 57XR are sharp spokes and the appearance that looks larger thanks to the spokes fully stretching to the rim ends. 57XR-X also has these characteristics and Speed-Brick Rim Type-1 was adopted for the rim well. In addition to incorporating a tough and wild design that does not lose its strength to the large body mass of vehicles with large PCD wheels, limiting target vehicle types made it possible to draw attractive concaves in the largest size. Furthermore, 57XR-X is equipped with the functionality－knurling finish that reduces shift of the tires and wheels to the rotation direction－that is useful in active driving. The new model also has many appealing design details such as stereoscopic logos at various sections that symbolize that the wheels are RAYS original model.
Two new varieties will be available from the second half of 2022: a large P.C.D. Hiace size, and a 5-hole 100/114.3 P.C.D. model.
Features
Spec
57XR-X
16inch/17inch
Cast 1pc. Wheel＊Knurling Finish
JWL+R spec1(5H models)
JWL&JWL-T standards(6H models)
Dark Bronze (Z2)

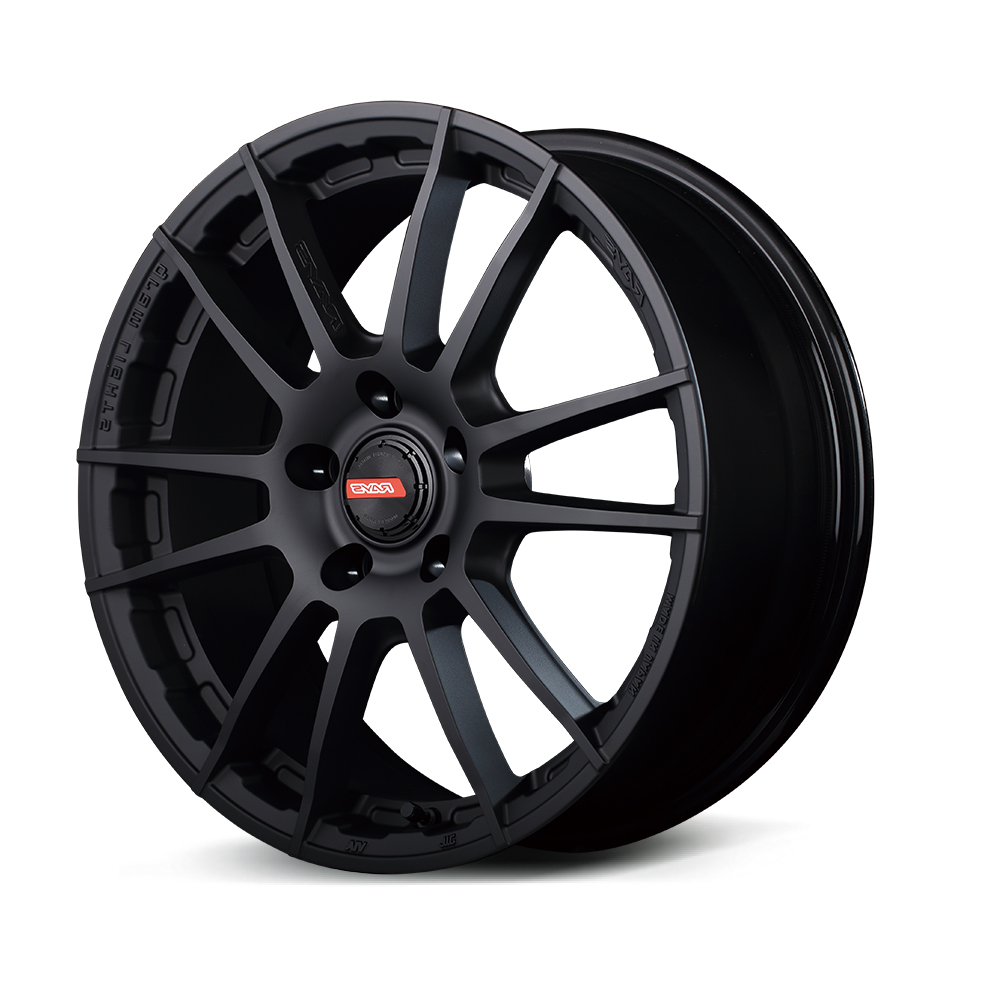

Black Graphite (B2)
5H model: Center Cap
-
No.15 GL CAP BK/RD
-
No.21 INSIDE ALUMINUM AIR VALVE BK
-
No.64 GL CAP BR/RD
6H model: Center Cap
Size / Spec
Caution
[ CALIPER CLEARANCE ]
▼： IMPREZA (GDB 4POT)
▽： IMPREZA (GDB & GRB 4POT)
Θ： WRX STI (4POT)
η： WRX STI (6POT)
■： IS, GS, RC, CROWN (210), MARK-X (3.5L)
⊿： IS-F
◎： RC-F
＃： SILVIA (S15)
△： SKYLINE (R34GT-R, CPV35, CKV36, HV37, RV37/400R)
▲： SKYLINE (R34 GT-R)
□： SKYLINE (CKV36, HV37, RV37/400R)
α： SKYLINE (CKV36, HV37), FUGA(Y51)
β： SKYLINE (HV37)
γ： SKYLINE (CPV35)
○： FAIRLADY Z (Z33, Z34, RZ34)
●： FAIRLADY Z (Z34)
Ω： FAIRLADY Z (Z33)
☆： LANCER EVO.(VII～IX, X)
★： LANCER EVO.X
∑： LANCER EVO.(VII～IX)
◆： GT-R (R35/φ380 rotor)
◇： GT-R (R35/φ380, φ390 rotor)
〓： GR YARIS (RZ)
Ψ： ROADSTER (ND)/124 Spider Brembo
※CALIPER CLEARANCE are for reference only and do not guarantee inspection, and/or the size mandated by local authorities. Selecting sizes is by your own judgement and we recommend consulting fitments with a professional outlet.
